Product Parameter (specification)
|
Parameter |
Specification |
Note |
|
Model |
HM-10K-G |
|
|
Rated AC Output Power |
10 kW |
|
|
Max. Conversion Efficiency |
≥ 98.5% |
|
|
Euro Efficiency |
≥ 98.0% |
|
|
Number of MPPTs |
2 |
|
|
MPPT voltage range |
90 V - 550 V |
|
|
Maximum DC input voltage |
600 V |
|
|
Rated voltage |
220 V / 230 V |
Adjustable |
|
Rated frequency |
50 Hz / 60 Hz |
Auto Adapt |
|
Protection rating |
IP65 |
Suitable for Outdoor |
|
Operating Temperature |
-25 °C ~ +60 °C |
|
|
Dimensions (WHD) |
440 * 390 * 180 mm |
|
|
Weight |
18 kg |
|
|
Certifications |
CE, IEC 62109, VDE-AR-N 4105 |
|
Product Feature and Application
Product Content

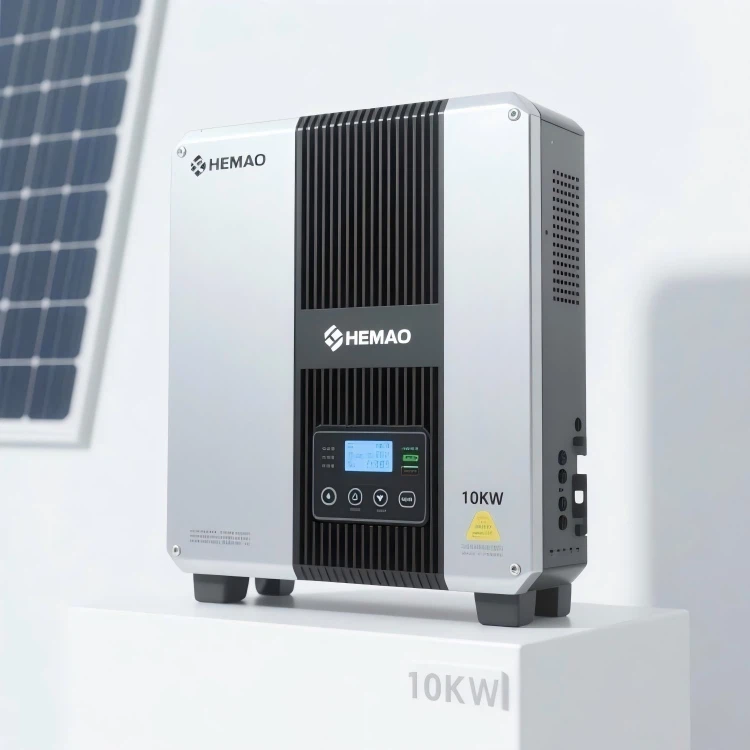

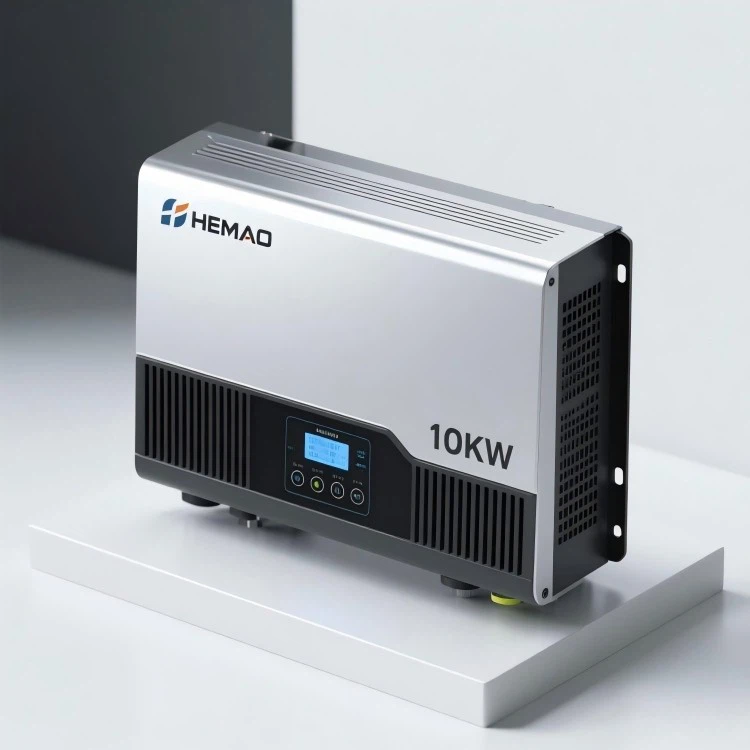

The HEMAO-10KW grid-connected inverter is a core component for customisable residential and commercial solar system designs.
Product Details
This product employs industrial-grade semiconductor components and high-protection housing materials, rendering it suitable for any demanding environment. Designed primarily for homeowners, small to medium-sized commercial establishments, and solar installers, this string inverter converts direct current (DC) generated by solar panels into alternating current (AC), enabling self-consumption and surplus electricity sales.
High-efficiency power generation and intelligent management
Utilises dual-channel MPPT and advanced algorithms to maximise system power output
Robust reliability and broad adaptability
IP65 protection rating and wide operating temperature range design ensure stable operation across diverse climatic conditions
Compliance and Professional Support
Products obtain key certifications for primary target markets (e.g., CE), ensuring grid-connection compliance.
FAQ
Q1:Hw many solar panels are typically required for a 10kW power generation system?
A1:Depends on the power output of a single solar panel.
For example, a 500W module would require approximately 20 panels.
The specific configuration must be designed and determined by the installer based on site conditions and module specifications.
Q2: What should be done when a micro inverter malfunctions?
A2:First, please check the fault code via the display screen or monitoring app, and refer to the user manual for initial troubleshooting (such as inspecting the DC switch and grid connection).
If the issue persists, please contact your local installer immediately.
Q3: Do you offer OEM/ODM services?
A3:Yes, we possess robust research and development capabilities alongside strong manufacturing capacity, enabling us to provide customised product design, software functionality and OEM branding services tailored to client requirements.
